The user may have to select an Organizational Unit, Repository and Project from the drop-down boxes.

The default configuration hides Package details from view.

In order to reveal packages click on the icon as indicated in the following screen-shot.

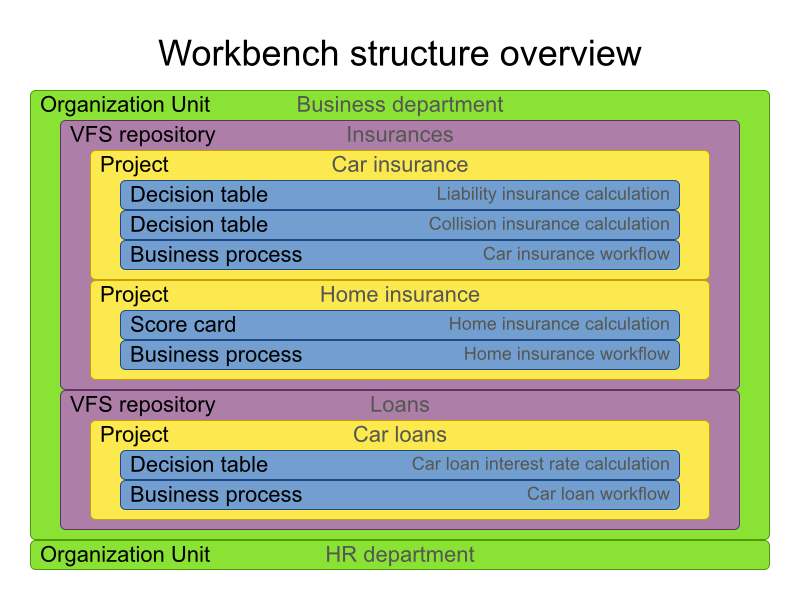

After a suitable combination of Organizational Unit, Repository, Project and Package have been selected the Project Explorer will show the contents. The exact combination of selections depends wholly on the structures defined within the Workbench installation and projects. Each section contains groups of related files.

The "Editor" tab is divided into the following sections:

Both resource name and location are mandatory parameters. When the "Ok" button is pressed a new Java file will be created and a new editor instance will be opened for the file edition.

The new field will also automatically be selected in the entity's field list, and its properties will be shown in the Field tab of the Property editor. The latter facilitates completion of some additional properties of the new field by the user (see below).

At any time, any field (without restrictions) can be deleted from an entity definition by clicking on the corresponding 'x' icon in the entity's fields table.

The resulting code is generated according to the following transformation rules:

A standard Java default (or no parameter) constructor is generated, as well as a full parameter constructor, i.e. a constructor that accepts as parameters a value for each of the entity's user-defined fields.

The entity's user-defined fields are translated into Java class fields, each one of them with its own getter and setter method, according to the following transformation rules:

As an example, the generated Java class code for the Purchase Order entity, corresponding to its definition as shown in the following figure purchase_example.jpg is visualized in the figure at the bottom of this chapter. Note that the two of the entity's fields, namely 'header' and 'lines' were marked with Equals, and have been assigned with the positions 2 and 1, respectively).

    package org.jbpm.examples.purchases;


    /**

    * This class was automatically generated by the data modeler tool.

    */

    @org.kie.api.definition.type.Label("Purchase Order")

    @org.kie.api.definition.type.Role(org.kie.api.definition.type.Role.Type.EVENT)

    @org.kie.api.remote.Remotable

    @org.kie.api.definition.type.ClassReactive

    @org.kie.api.definition.type.TypeSafe(true)

    @org.kie.api.definition.type.Expires("2d")

    public class PurchaseOrder implements java.io.Serializable

    {


    static final long serialVersionUID = 1L;


    @org.kie.api.definition.type.Label("Total")

    @org.kie.api.definition.type.Position(3)

    private java.lang.Double total;


    @org.kie.api.definition.type.Label("Description")

    @org.kie.api.definition.type.Position(0)

    private java.lang.String description;


    @org.kie.api.definition.type.Label("Lines")

    @org.kie.api.definition.type.Position(2)

    @org.kie.api.definition.type.Key

    private java.util.List<org.jbpm.examples.purchases.PurchaseOrderLine> lines;


    @org.kie.api.definition.type.Label("Header")

    @org.kie.api.definition.type.Position(1)

    @org.kie.api.definition.type.Key

    private org.jbpm.examples.purchases.PurchaseOrderHeader header;


    @org.kie.api.definition.type.Position(4)

    private java.lang.Boolean requiresCFOApproval;


    public java.lang.Double getTotal()

    {

    return this.total;

    }


    public void setTotal(java.lang.Double total)

    {

    this.total = total;

    }


    public java.lang.String getDescription()

    {

    return this.description;

    }


    public void setDescription(java.lang.String description)

    {

    this.description = description;

    }


    public java.util.List<org.jbpm.examples.purchases.PurchaseOrderLine> getLines()

    {

    return this.lines;

    }


    public void setLines(java.util.List<org.jbpm.examples.purchases.PurchaseOrderLine> lines)

    {

    this.lines = lines;

    }


    public org.jbpm.examples.purchases.PurchaseOrderHeader getHeader()

    {

    return this.header;

    }


    public void setHeader(org.jbpm.examples.purchases.PurchaseOrderHeader header)

    {

    this.header = header;

    }


    public java.lang.Boolean getRequiresCFOApproval()

    {

    return this.requiresCFOApproval;

    }


    public void setRequiresCFOApproval(java.lang.Boolean requiresCFOApproval)

    {

    this.requiresCFOApproval = requiresCFOApproval;

    }


    public PurchaseOrder()

    {

    }


    public PurchaseOrder(java.lang.String description,

    org.jbpm.examples.purchases.PurchaseOrderHeader header,

    java.util.List<org.jbpm.examples.purchases.PurchaseOrderLine> lines,

    java.lang.Double total, java.lang.Boolean requiresCFOApproval)

    {

    this.description = description;

    this.header = header;

    this.lines = lines;

    this.total = total;

    this.requiresCFOApproval = requiresCFOApproval;

    }


    public PurchaseOrder(org.jbpm.examples.purchases.PurchaseOrderHeader header,

    java.util.List<org.jbpm.examples.purchases.PurchaseOrderLine> lines)

    {

    this.header = header;

    this.lines = lines;

    }


    @Override

    public boolean equals(Object o)

    {

    if (this == o)

    return true;

    if (o == null || getClass() != o.getClass())

    return false;

    org.jbpm.examples.purchases.PurchaseOrder that = (org.jbpm.examples.purchases.PurchaseOrder) o;

    if (header != null ? !header.equals(that.header) : that.header != null)

    return false;

    if (lines != null ? !lines.equals(that.lines) : that.lines != null)

    return false;

    return true;

    }


    @Override

    public int hashCode()

    {

    int result = 17;

    result = 31 * result + (header != null ? header.hashCode() : 0);

    result = 31 * result + (lines != null ? lines.hashCode() : 0);

    return result;

    }


    }




Generally categories are created with meaningful name that match the area of the business the rule applies to (if the rule applies to multiple areas, multiple categories can be attached).
