A Move is a change (or set of changes) from a solution A to a solution B. For example, the move below changes queen C from row 0 to row 2:

The new solution is called a neighbor of the original solution, because it can be reached in a single Move. Although a single move can change multiple queens, the neighbors of a solution should always be a very small subset of all possible solutions. For example, on that original solution, these are all possible changeMove's:

If we ignore the 4 changeMove's that have not impact and are therefore not doable, we can see that number of moves is n * (n - 1) = 12. This is far less than the number of possible solutions, which is n ^ n = 256. As the problem scales out, the number of possible moves increases far less than the number of possible solutions.

Yet, in 4 changeMove's or less we can reach any solution. For example we can reach a very different solution in 3 changeMove's:

All optimization algorithms use Move's to transition from one solution to a neighbor solution. Therefor, all the optimization algorithms are confronted with Move selection: the craft of creating and iterating moves efficiently and the art of finding the most promising subset of random moves to evaluate first.

A MoveSelector's main function is to create Iterator<Move> when needed. An optimization algorithm will iterate through a subset of those moves.

Here's an example how to configure a changeMoveSelector for the optimization algorithm Local Search:

  <localSearch>

    <changeMoveSelector/>

    ...

  </localSearch>

Out of the box, this works and all properties of the changeMoveSelector are defaulted sensibly (unless that fails fast due to ambiguity). On the other hand, the configuration can be customized significantly for specific use cases. For example: you might want to configure a filter to discard pointless moves.

To create a Move, a MoveSelector needs to select 1 or more planning entities and/or planning values to move. Just like MoveSelectors, EntitySelectors and ValueSelectors need to support a similar feature set (such as scalable just-in-time selection). Therefore, they all implement a common interface Selector and they are configured similarly.

A MoveSelector is often composed out of EntitySelectors, ValueSelectors or even other MoveSelectors, which can be configured individually if desired:

    <unionMoveSelector>

      <changeMoveSelector>

        <entitySelector>

          ...

        </entitySelector>

        <valueSelector>

          ...

        </valueSelector>

        ...

      </changeMoveSelector>

      <swapMoveSelector>

        ...

      </swapMoveSelector>

    </unionMoveSelector>

Together, this structure forms a Selector tree:

The root of this tree is a MoveSelector which is injected into the optimization algorithm implementation to be (partially) iterated in every step.

For 1 planning variable, the ChangeMove selects 1 planning entity and 1 planning value and assigns the entity's variable to that value.

Simplest configuration:

    <changeMoveSelector/>

Advanced configuration:

    <changeMoveSelector>

      ... <!-- Normal selector properties -->

      <entitySelector>

        <entityClass>...Lecture</entityClass>

        ...

      </entitySelector>

      <valueSelector>

        <variableName>room</variableName>

        ...

      </valueSelector>

    </changeMoveSelector>

A ChangeMove is the finest grained move.

The SwapMove selects 2 different planning entities and swaps the planning values of all their planning variables.

Although a SwapMove on a single variable is essentially just 2 ChangeMoves, it's often the winning step where the first of the 2 ChangeMoves would not be the winning step because it leave the solution in a state with broken hard constraints. For example: swapping the room of 2 lectures doesn't bring the solution in a intermediate state where both lectures are in the same room which breaks a hard constraint.

Simplest configuration:

    <swapMoveSelector/>

Advanced configuration:

    <swapMoveSelector>

      ... <!-- Normal selector properties -->

      <entitySelector>

        <entityClass>...Lecture</entityClass>

        ...

      </entitySelector>

      <secondaryEntitySelector>

        ...

      </secondaryEntitySelector>

      <variableNameInclude>room</variableNameInclude>

      <variableNameInclude>...</variableNameInclude>

    </swapMoveSelector>

The secondaryEntitySelector is rarely needed: if it is not specified, entities from the same entitySelector are swapped.

If one or more variableNameInclude properties are specified, not all planning variables will be swapped, but only those specified. For example for course scheduling, specifying only variableNameInclude room will make it only swap room, not period.

A pillar is a set of planning entities which have the same planning value(s) for their planning variable(s). The PillarChangeMove selects 1 entity pillar (or subset of those) and changes the value of 1 variable (which is the same for all entities) to another value.

In the example above, queen A and C have the same value (row 0) and are moved to row 2. Also the yellow and blue process have the same value (computer Y) and are moved to computer X.

Simplest configuration:

    <pillarChangeMoveSelector/>

Advanced configuration:

    <pillarSwapMoveSelector>

      ... <!-- Normal selector properties -->

      <pillarSelector>

        <entitySelector>

          <entityClass>...Lecture</entityClass>

          ...

        </entitySelector>

        <subPillarEnabled>true</subPillarEnabled>

        <minimumSubPillarSize>1</minimumSubPillarSize>

        <maximumSubPillarSize>1000</maximumSubPillarSize>

      </pillarSelector>

      <valueSelector>

        <variableName>room</variableName>

        ...

      </valueSelector>

    </pillarSwapMoveSelector>

A sub pillar is a subset of entities that share the same value(s) for their variable(s). For example if queen A, B, C and D are all located on row 0, they are a pillar and [A, D] is one of the many sub pillars. If subPillarEnabled (defaults to true) is false, no sub pillars are selected. If sub pillars are enabled, the pillar itself is also included and the properties minimumSubPillarSize (defaults to 1) and maximumSubPillarSize (defaults to infinity) limit the size of the selected (sub) pillar.

The other properties are explained in changeMoveSelector.

A pillar is a set of planning entities which have the same planning value(s) for their planning variable(s). The PillarSwapMove selects 2 different entity pillars and swaps the values of all their variables for all their entities.

Simplest configuration:

    <pillarSwapMoveSelector/>

Advanced configuration:

    <pillarSwapMoveSelector>

      ... <!-- Normal selector properties -->

      <pillarSelector>

        <entitySelector>

          <entityClass>...Lecture</entityClass>

          ...

        </entitySelector>

        <subPillarEnabled>true</subPillarEnabled>

        <minimumSubPillarSize>1</minimumSubPillarSize>

        <maximumSubPillarSize>1000</maximumSubPillarSize>

      </pillarSelector>

      <secondaryPillarSelector>

        <entitySelector>

          ...

        </entitySelector>

        ...

      </secondaryPillarSelector>

      <variableNameInclude>room</variableNameInclude>

      <variableNameInclude>...</variableNameInclude>

    </pillarSwapMoveSelector>

The secondaryPillarSelector is rarely needed: if it is not specified, entities from the same pillarSelector are swapped.

The other properties are explained in swapMoveSelector and pillarChangeMoveSelector.

A subChain is a set of planning entities with a chained planning variable which form part of a chain. The subChainChangeMove selects a subChain and moves it to another place in a different or the same anchor chain.

Simplest configuration:

    <subChainChangeMoveSelector/>

Advanced configuration:

    <subChainChangeMoveSelector>

      ... <!-- Normal selector properties -->

      <entityClass>...Customer</entityClass>

      <subChainSelector>

        <valueSelector>

          <variableName>previousStandstill</variableName>

          ...

        </valueSelector>

        <minimumSubChainSize>2</minimumSubChainSize>

        <maximumSubChainSize>40</maximumSubChainSize>

      </subChainSelector>

      <valueSelector>

        <variableName>previousStandstill</variableName>

        ...

      </valueSelector>

      <selectReversingMoveToo>true</selectReversingMoveToo>

    </subChainChangeMoveSelector>

The subChainSelector selects a number of entities, no less than minimumSubChainSize (defaults to 1) and no more than maximumSubChainSize (defaults to infinity).

The property selectReversingMoveToo (defaults to true) enabled selecting the reverse of every subchain too.

The subChainSwapMove selects 2 different subChains and moves it to another place in a different or the same anchor chain.

Simplest configuration:

    <subChainSwapMoveSelector/>

Advanced configuration:

    <subChainSwapMoveSelector>

      ... <!-- Normal selector properties -->

      <entityClass>...Customer</entityClass>

      <subChainSelector>

        <valueSelector>

          <variableName>previousStandstill</variableName>

          ...

        </valueSelector>

        <minimumSubChainSize>2</minimumSubChainSize>

        <maximumSubChainSize>40</maximumSubChainSize>

      </subChainSelector>

      <secondarySubChainSelector>

        <valueSelector>

          <variableName>previousStandstill</variableName>

          ...

        </valueSelector>

        <minimumSubChainSize>2</minimumSubChainSize>

        <maximumSubChainSize>40</maximumSubChainSize>

      </secondarySubChainSelector>

      <selectReversingMoveToo>true</selectReversingMoveToo>

    </subChainSwapMoveSelector>

The secondarySubChainSelector is rarely needed: if it is not specified, entities from the same subChainSelector are swapped.

The other properties are explained in subChainChangeMoveSelector.

A unionMoveSelector selects a Move by selecting 1 of its child MoveSelectors to supply the next Move.

Simplest configuration:

    <unionMoveSelector>

      <...MoveSelector/>

      <...MoveSelector/>

      <...MoveSelector/>

      ...

    </unionMoveSelector>

Advanced configuration:

    <unionMoveSelector>

      ... <!-- Normal selector properties -->

      <selectorProbabilityWeightFactoryClass>...ProbabilityWeightFactory</selectorProbabilityWeightFactoryClass>

      <changeMoveSelector>

        <fixedProbabilityWeight>...</fixedProbabilityWeight>

        ...

      </changeMoveSelector>

      <swapMoveSelector>

        <fixedProbabilityWeight>...</fixedProbabilityWeight>

        ...

      </swapMoveSelector>

      <...MoveSelector>

        <fixedProbabilityWeight>...</fixedProbabilityWeight>

        ...

      </...MoveSelector>

      ...

    </unionMoveSelector>

The selectorProbabilityWeightFactory determines in selectionOrder RANDOM how often a child MoveSelector is selected to supply the next Move. By default, each child MoveSelector has the same chance of being selected.

Change the fixedProbabilityWeight of such a child to select it more often. For example, the unionMoveSelector can return a SwapMove twice as often as a ChangeMove:

    <unionMoveSelector>

      <changeMoveSelector>

        <fixedProbabilityWeight>1.0</fixedProbabilityWeight>

        ...

      </changeMoveSelector>

      <swapMoveSelector>

        <fixedProbabilityWeight>2.0</fixedProbabilityWeight>

        ...

      </swapMoveSelector>

    </unionMoveSelector>

The number of possible ChangeMoves is very different from the number of possible SwapMoves and furthermore it's problem dependent. To give each individual Move the same selection chance (as opposed to each MoveSelector), use the FairSelectorProbabilityWeightFactory:

    <unionMoveSelector>

      <selectorProbabilityWeightFactoryClass>org.optaplanner.core.impl.heuristic.selector.common.decorator.FairSelectorProbabilityWeightFactory</selectorProbabilityWeightFactoryClass>

      <changeMoveSelector/>

      <swapMoveSelector/>

    </unionMoveSelector>

A cartesianProductMoveSelector selects a new CompositeMove. It builds that CompositeMove by selecting 1 Move per child MoveSelector and adding it to the CompositeMove.

Simplest configuration:

    <cartesianProductMoveSelector>

      <...MoveSelector/>

      <...MoveSelector/>

      <...MoveSelector/>

      ...

    </cartesianProductMoveSelector>

Advanced configuration:

    <cartesianProductMoveSelector>

      ... <!-- Normal selector properties -->

      <ignoreEmptyChildIterators>true</ignoreEmptyChildIterators>

      <changeMoveSelector>

        ...

      </changeMoveSelector>

      <swapMoveSelector>

        ...

      </swapMoveSelector>

      <...MoveSelector>

        ...

      </...MoveSelector>

      ...

    </cartesianProductMoveSelector>

The propery ignoreEmptyChildIterators (true by default) will ignore every empty childMoveSelector to avoid returning no moves. For example: a cartesian product of changeMoveSelector A and B, for which B is empty (because all it's entities are immovable) returns no moves if ignoreEmptyChildIterators is false and the moves of A if ignoreEmptyChildIterators is true.

A Selector's cacheType determines when a selection (such as a Move, an entity, a value, ...) is created and how long it lives.

Almost every Selector supports setting a cacheType:

    <changeMoveSelector>

      <cacheType>PHASE</cacheType>

      ...

    </changeMoveSelector>

The following cacheTypes are supported:

A cacheType can be set on composite selectors too:

    <unionMoveSelector>

      <cacheType>PHASE</cacheType>

      <changeMoveSelector/>

      <swapMoveSelector/>

      ...

    </unionMoveSelector>

Nested selectors of a cached selector cannot be configured to be cached themselves, unless it's a higher cacheType. For example: a STEP cached unionMoveSelector can hold a PHASE cached changeMoveSelector, but not a STEP cached changeMoveSelector.

A Selector's selectionOrder determines the order in which the selections (such as Moves, entities, values, ...) are iterated. An optimization algorithm will usually only iterate through a subset of its MoveSelector's selections, starting from the start, so the selectionOrder is critical to decide which Moves are actually evaluated.

Almost every Selector supports setting a selectionOrder:

    <changeMoveSelector>

      ...

      <selectionOrder>RANDOM</selectionOrder>

      ...

    </changeMoveSelector>

The following selectionOrders are supported:

A selectionOrder can be set on composite selectors too.

There can be certain moves that you don't want to select, because:

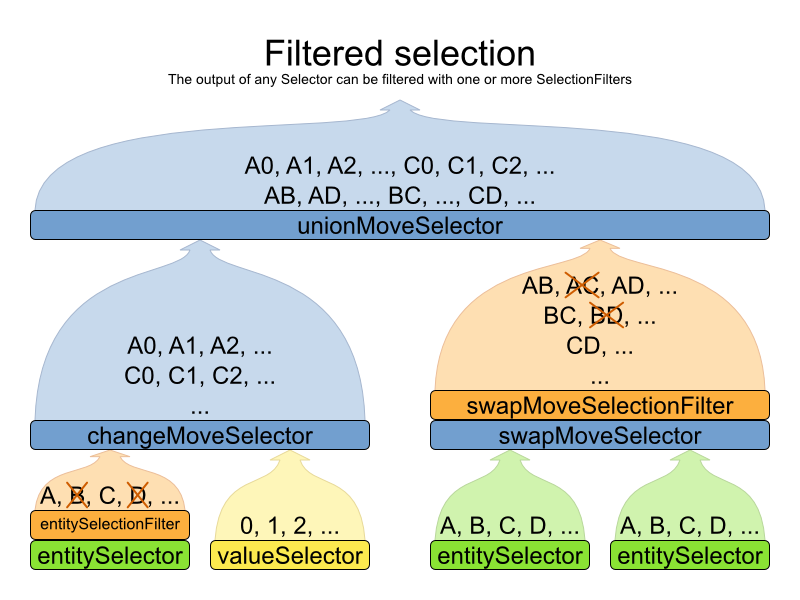

Filtered selection can happen on any Selector in the selector tree, including any MoveSelector, EntitySelector or ValueSelector. It works with any cacheType and selectionOrder.

Filtering uses the interface SelectionFilter:

public interface SelectionFilter<T> {


    boolean accept(ScoreDirector scoreDirector, T selection);


}

Implement the method accept to return false on a discarded selection. Unaccepted moves will not be selected and will therefore never have their method doMove called.

public class DifferentCourseSwapMoveFilter implements SelectionFilter<SwapMove> {


    public boolean accept(ScoreDirector scoreDirector, SwapMove move) {

        Lecture leftLecture = (Lecture) move.getLeftEntity();

        Lecture rightLecture = (Lecture) move.getRightEntity();

        return !leftLecture.getCourse().equals(rightLecture.getCourse());

    }


}

Apply the filter on the lowest level possible. In most cases, you 'll need to know both the entity and the value involved and you'll have to apply a filterClass on the moveSelector:

    <swapMoveSelector>

      <filterClass>org.optaplanner.examples.curriculumcourse.solver.move.DifferentCourseSwapMoveFilter</filterClass>

    </swapMoveSelector>

But if possible, apply it on a lower levels, such as a filterClass on the entitySelector or valueSelector:

    <changeMoveSelector>

      <entitySelector>

        <filterClass>...EntityFilter</filterClass>

      </entitySelector>

    </changeMoveSelector>

You can configure multiple filterClass elements on a single selector.

Sorted selection can happen on any Selector in the selector tree, including any MoveSelector, EntitySelector or ValueSelector. It does not work with cacheType JUST_IN_TIME and it only works with selectionOrder SORTED.

It's mostly used in construction heuristics.

public class CloudProcessDifficultyComparator implements Comparator<CloudProcess> {


    public int compare(CloudProcess a, CloudProcess b) {

        return new CompareToBuilder()

                .append(a.getRequiredMultiplicand(), b.getRequiredMultiplicand())

                .append(a.getId(), b.getId())

                .toComparison();

    }


}

    <entitySelector>

      <cacheType>PHASE</cacheType>

      <selectionOrder>SORTED</selectionOrder>

      <sorterComparatorClass>...CloudProcessDifficultyComparator</sorterComparatorClass>

      <sorterOrder>DESCENDING</sorterOrder>

    </entitySelector>

public interface SelectionSorterWeightFactory<Sol extends Solution, T> {


    Comparable createSorterWeight(Sol solution, T selection);


}

public class QueenDifficultyWeightFactory implements SelectionSorterWeightFactory<NQueens, Queen> {


    public Comparable createSorterWeight(NQueens nQueens, Queen queen) {

        int distanceFromMiddle = calculateDistanceFromMiddle(nQueens.getN(), queen.getColumnIndex());

        return new QueenDifficultyWeight(queen, distanceFromMiddle);

    }


    // ...


    public static class QueenDifficultyWeight implements Comparable<QueenDifficultyWeight> {


        private final Queen queen;

        private final int distanceFromMiddle;


        public QueenDifficultyWeight(Queen queen, int distanceFromMiddle) {

            this.queen = queen;

            this.distanceFromMiddle = distanceFromMiddle;

        }


        public int compareTo(QueenDifficultyWeight other) {

            return new CompareToBuilder()

                    // The more difficult queens have a lower distance to the middle

                    .append(other.distanceFromMiddle, distanceFromMiddle) // Decreasing

                    // Tie breaker

                    .append(queen.getColumnIndex(), other.queen.getColumnIndex())

                    .toComparison();

        }


    }


}

    <entitySelector>

      <cacheType>PHASE</cacheType>

      <selectionOrder>SORTED</selectionOrder>

      <sorterWeightFactoryClass>...QueenDifficultyWeightFactory</sorterWeightFactoryClass>

      <sorterOrder>DESCENDING</sorterOrder>

    </entitySelector>

public interface SelectionSorter<T> {


    void sort(ScoreDirector scoreDirector, List<T> selectionList);


}

    <entitySelector>

      <cacheType>PHASE</cacheType>

      <selectionOrder>SORTED</selectionOrder>

      <sorterClass>...MyEntitySorter</sorterClass>

    </entitySelector>

Probabilistic selection can happen on any Selector in the selector tree, including any MoveSelector, EntitySelector or ValueSelector. It does not work with cacheType JUST_IN_TIME and it only works with selectionOrder PROBABILISTIC.

Each selection has a probabilityWeight, which determines the chance that's that selection will be selected:

public interface SelectionProbabilityWeightFactory<T> {


    double createProbabilityWeight(ScoreDirector scoreDirector, T selection);


}

    <entitySelector>

      <cacheType>PHASE</cacheType>

      <selectionOrder>PROBABILISTIC</selectionOrder>

      <probabilityWeightFactoryClass>...MyEntityProbabilityWeightFactoryClass</probabilityWeightFactoryClass>

    </entitySelector>

For example, if there are 3 entities: process A (probabilityWeight 2.0), process B (probabilityWeight 0.5) and process C (probabilityWeight 0.5), then process A will be selected 4 times more than B and C.

Selecting all possible moves sometimes does not scale well enough, especially for construction heuristics (which don't support acceptedCountLimit).

To limit the number of selected selection per step, apply a selectedCountLimit on the selector:

    <changeMoveSelector>

      <selectedCountLimit>100</selectedCountLimit>

    </changeMoveSelector>

During mimic selection, 1 normal selector records its selection and 1 or multiple other special selectors replay that selection. The recording selector acts as a normal selector and supports all other configuration properties. A replaying selector mimics the recording selection and support no other configuration properties.

The recording selector needs an id. A replaying selector must reference a recorder's id with a mimicSelectorRef:

      <cartesianProductMoveSelector>

        <changeMoveSelector>

          <entitySelector id="entitySelector"/>

          <valueSelector>

            <variableName>period</variableName>

          </valueSelector>

        </changeMoveSelector>

        <changeMoveSelector>

          <entitySelector mimicSelectorRef="entitySelector"/>

          <valueSelector>

            <variableName>room</variableName>

          </valueSelector>

        </changeMoveSelector>

      </cartesianProductMoveSelector>

Mimic selection is usefull to create a composite move from 2 moves that affect the same entity.

To determine which move types might be missing in your implementation, run a Benchmarker for a short amount of time and configure it to write the best solutions to disk. Take a look at such a best solution: it will likely be a local optima. Try to figure out if there's a move that could get out of that local optima faster.

If you find one, implement that course-grained move, mix it with the existing moves and benchmark it against the previous configurations to see if you want to keep it.

Instead of reusing the generic Moves (such as ChangeMove) you can also implement your own Moves. Generic and custom MoveSelectors can be combined as desired.

A custom Move can be tailored to work to the advantage of your constraints. For example, in examination scheduling, changing the period of an exam A also changes te period of all the exams that need to coincide with exam A.

A custom Move is also slightly faster than a generic Move. However, it's far more work to implement and much harder to avoid bugs. After implementing a custom Move, make sure to turn on environmentMode FULL_ASSERT to check for score corruptions.

Your custom moves must implement the Move interface:

public interface Move {


    boolean isMoveDoable(ScoreDirector scoreDirector);


    Move createUndoMove(ScoreDirector scoreDirector);

    void doMove(ScoreDirector scoreDirector);


    Collection<? extends Object> getPlanningEntities();

    Collection<? extends Object> getPlanningValues();


}

Let's take a look at the Move implementation for 4 queens which moves a queen to a different row:

public class RowChangeMove implements Move {


    private Queen queen;

    private Row toRow;


    public RowChangeMove(Queen queen, Row toRow) {

        this.queen = queen;

        this.toRow = toRow;

    }


    // ... see below


}

An instance of RowChangeMove moves a queen from its current row to a different row.

Planner calls the doMove(ScoreDirector) method to do a move. The Move implementation must notify the ScoreDirector of any changes it make to planning entity's variables:

    public void doMove(ScoreDirector scoreDirector) {

        scoreDirector.beforeVariableChanged(queen, "row"); // before changes are made to the queen.row

        queen.setRow(toRow);

        scoreDirector.afterVariableChanged(queen, "row"); // after changes are made to the queen.row

    }

You need to call the methods scoreDirector.beforeVariableChanged(Object, String) and scoreDirector.afterVariableChanged(Object, String) directly before and after modifying the entity.

Planner automatically filters out non doable moves by calling the isMoveDoable(ScoreDirector) method on a move. A non doable move is:

In the n queens example, a move which moves the queen from its current row to the same row isn't doable:

    public boolean isMoveDoable(ScoreDirector scoreDirector) {

        return !ObjectUtils.equals(queen.getRow(), toRow);

    }

Because we won't generate a move which can move a queen outside the board limits, we don't need to check it. A move that is currently not doable could become doable on the working Solution of a later step.

Each move has an undo move: a move (normally of the same type) which does the exact opposite. In the example above the undo move of C0 to C2 would be the move C2 to C0. An undo move is created from a Move, before the Move has been done on the current solution.

    public Move createUndoMove(ScoreDirector scoreDirector) {

        return new RowChangeMove(queen, queen.getRow());

    }

Notice that if C0 would have already been moved to C2, the undo move would create the move C2 to C2, instead of the move C2 to C0.

A solver phase might do and undo the same Move more than once. In fact, many solver phases will iteratively do an undo a number of moves to evaluate them, before selecting one of those and doing that move again (without undoing it this time).

A Move must implement the getPlanningEntities() and getPlanningValues() methods. They are used by entity tabu and value tabu respectively. When they are called, the Move has already been done.

    public List<? extends Object> getPlanningEntities() {

        return Collections.singletonList(queen);

    }


    public Collection<? extends Object> getPlanningValues() {

        return Collections.singletonList(toRow);

    }

If your Move changes multiple planning entities, return all of them in getPlanningEntities() and return all their values (to which they are changing) in getPlanningValues().

    public Collection<? extends Object> getPlanningEntities() {

        return Arrays.asList(leftCloudProcess, rightCloudProcess);

    }


    public Collection<? extends Object> getPlanningValues() {

        return Arrays.asList(leftCloudProcess.getComputer(), rightCloudProcess.getComputer());

    }

A Move must implement the equals() and hashCode() methods. 2 moves which make the same change on a solution, should be equal.

    public boolean equals(Object o) {

        if (this == o) {

            return true;

        } else if (o instanceof RowChangeMove) {

            RowChangeMove other = (RowChangeMove) o;

            return new EqualsBuilder()

                    .append(queen, other.queen)

                    .append(toRow, other.toRow)

                    .isEquals();

        } else {

            return false;

        }

    }


    public int hashCode() {

        return new HashCodeBuilder()

                .append(queen)

                .append(toRow)

                .toHashCode();

    }

Notice that it checks if the other move is an instance of the same move type. This instanceof check is important because a move will be compared to a move with another move type if you're using more then 1 move type.

It's also recommended to implement the toString() method as it allows you to read Planner's logging more easily:

    public String toString() {

        return queen + " => " + toRow;

    }

Now that we can implement a single custom Move, let's take a look at generating such custom moves.

The easiest way to generate custom moves is by implementing the interface MoveListFactory:

public interface MoveListFactory<S extends Solution> {


    List<Move> createMoveList(S solution);


}

For example:

public class RowChangeMoveFactory implements MoveListFactory<NQueens> {


    public List<Move> createMoveList(NQueens nQueens) {

        List<Move> moveList = new ArrayList<Move>();

        for (Queen queen : nQueens.getQueenList()) {

            for (Row toRow : nQueens.getRowList()) {

                moveList.add(new RowChangeMove(queen, toRow));

            }

        }

        return moveList;

    }


}

Simple configuration (which can be nested in a unionMoveSelector just like any other MoveSelector):

    <moveListFactory>

      <moveListFactoryClass>org.optaplanner.examples.nqueens.solver.move.factory.RowChangeMoveFactory</moveListFactoryClass>

    </moveListFactory>

Advanced configuration:

    <moveListFactory>

      ... <!-- Normal moveSelector properties -->

      <moveListFactoryClass>org.optaplanner.examples.nqueens.solver.move.factory.RowChangeMoveFactory</moveListFactoryClass>

    </moveListFactory>

Because the MoveListFactory generates all moves at once in a List<Move>, it does not support cacheType JUST_IN_TIME. Therefore, moveListFactory uses cacheType STEP by default and it scales badly in memory footprint.

Use this advanced form to generate custom moves by implementing the interface MoveIteratorFactory:

public interface MoveIteratorFactory {


    long getSize(ScoreDirector scoreDirector);


    Iterator<Move> createOriginalMoveIterator(ScoreDirector scoreDirector);


    Iterator<Move> createRandomMoveIterator(ScoreDirector scoreDirector, Random workingRandom);


}

The method getSize() must give an estimation of the size. It doesn't need to be correct. The method createOriginalMoveIterator is called if the selectionOrder is ORIGINAL or if it is cached. The method createRandomMoveIterator is called for selectionOrder RANDOM combined with cacheType JUST_IN_TIME.

Simple configuration (which can be nested in a unionMoveSelector just like any other MoveSelector):

    <moveIteratorFactory>

      <moveIteratorFactoryClass>...</moveIteratorFactoryClass>

    </moveIteratorFactory>

Advanced configuration:

    <moveIteratorFactory>

      ... <!-- Normal moveSelector properties -->

      <moveIteratorFactoryClass>...</moveIteratorFactoryClass>

    </moveIteratorFactory>
